Calibration of PMMC Voltmeter Using a Potentiometer

Procedure for the Calibration of Permanent Magnet Moving Coil (PMMC) Voltmeter:-

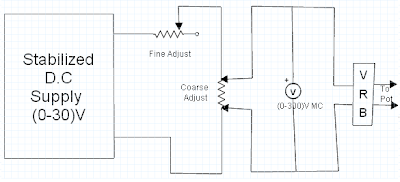

Calibration of Voltmeter Circuit
  1. Give connections as per the circuit diagram in above figure.
  2. Vary the voltage across the voltmeter so that it reads a rounded position, say 5 volts.
  3. Measure the voltage across the voltmeter by potentiometer and tally the voltmeter indication and potentiometer reading.
  4. Draw the calibration curve which is drawn between % error voltage Vs measured potentiometer readings. The expected curve is as follows:

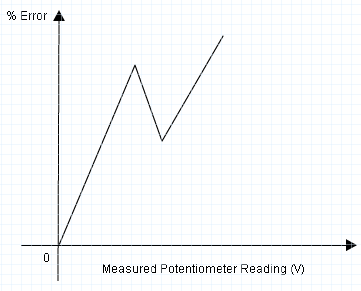

    Calibration of Voltmeter using Potentiometer Expected Curve
  5. Repeat the above steps for different voltages and tabulate the results. The expected tabular readings are given below:

    S.NoVoltmeter ReadingPot. Reading m.f(v)Measured Pot. Reading = [(m.f)x 30/1.5]% error
    1.50.2494.980.4
    2.100.4879.742.6
    3.150.73614.721.86
    4.200.98719.741.3
    5.251.219524.392.44
    6.301.46129.222.6

Precautions

  • Connections should always be made with due care of polarity.
  • For measuring higher voltages better use a volt ratio box.
  • Standardize the potentiometer at regular intervals during prolonged tests to compensate it from any slight drift in the battery voltage.
