Understanding Deposition Systems: A Comprehensive Guide

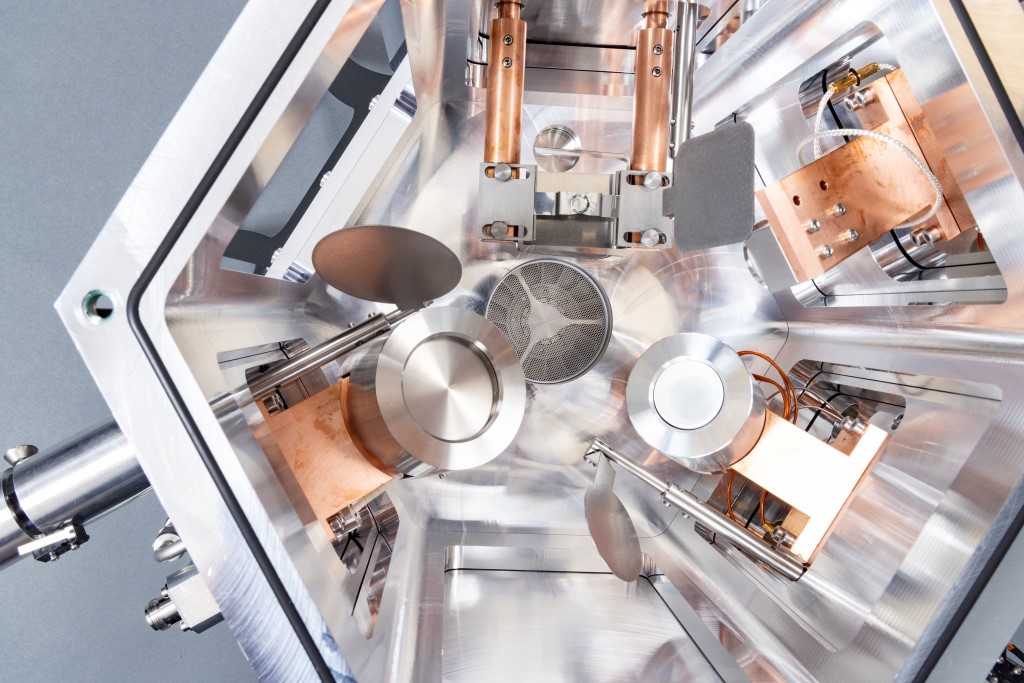

Thin film deposition systems

Thin film deposition systems are critical in many sectors because they allow the synthesis of thin layers of material on a substrate. These technologies provide flexibility and customization choices, allowing researchers and manufacturers to improve the qualities of substrates for various applications. This blog post will explore the world of deposition systems, investigating their working principles, types, applications, and benefits.

What Exactly is a Deposition System?

A deposition system is a sophisticated tool for depositing thin layers of material onto a substrate. Physical methods or chemical reactions can form these thin films, which are often only a few atoms thick. Deposition systems can be either physical vapour deposition (PVD) or chemical vapour deposition (CVD). Let’s break these down and examine them separately.

PVD (Physical Vapour Deposition)

PVD coats the target material onto the substrate via mechanical, electromechanical, or thermodynamic methods. It entails vaporising and depositing a solid substance onto a substrate in a high-vacuum deposition chamber. PVD techniques commonly employed include:


Evaporation is a process that uses resistive heating to create a vapour pressure on the material, which results in its deposition onto the substrate. This category includes methods such as electron beam evaporation, ion-assisted deposition (IAD), and thermal evaporation.

Magnetron Sputtering

A high-energy plasma is employed in this approach to eject atoms or ions from a target material, which are then deposited onto the substrate.

Reactive Sputtering

This approach, like magnetron sputtering, requires the introduction of reactive gases into the process, resulting in the production of a compound layer on the substrate.

Ion Beam Sputtering (IBS)

Using an ion beam, IBS sputters atoms from a target material, providing precise control over film composition and stoichiometry.

PLD (Pulsed Laser Deposition)

PLD uses high-energy laser pulses to ablate material from a target, which is then deposited as a thin film onto a substrate.

Chemical Vapour Deposition (CVD)

CVD employs volatile precursor chemicals in the gas phase to initiate a chemical reaction resulting in a thin film deposition on the substrate. CVD methods that are regularly employed include:

Atmospheric Pressure CVD

This technology is appropriate for large-scale production because it runs at atmospheric pressure.

Low-Pressure CVD

LP-CVD involves using lower pressures to better control film quality and uniformity.

Ultra-High Vacuum CVD

UHV-CVD operates at extremely low pressures, producing high-purity films with precise thickness control.

Atomic Layer Deposition (ALD)

Atomic Layer Deposition (ALD) is the process of successively exposing a substrate to precursors, forming a film one atomic layer at a time.

Plasma-Enhanced CVD

A plasma source boosts chemical processes, allowing for lower deposition temperatures and higher film quality.

Applications of Thin Film Technology

Thin films offer various uses due to their ability to adapt and improve substrate qualities. Among the notable applications are:


Thin films increase light transmission, colour filtering, and reflection control in consumer electronics products, optical filters, and LED displays.

Precision Optics

Thin films improve performance and efficiency in focal plane arrays, anti-reflectivity coatings, high-reflectivity coatings, and other optical components, such as optical thin film coatings with interference filters and dielectric mirrors.


Thin films fabricate photodetectors, RF power transistors, focal plane arrays, LEDs, and other semiconductor devices.

Medical Applications

Thin films with biocompatible qualities are used as implants’ hard coatings to increase their endurance and compatibility.

Decorative Coatings

Thin films can be applied to pottery, cutlery, and other objects to give visually beautiful and long-lasting surface treatments.

Advantages of Thin Film Technology

Thin film technology provides multiple benefits, making it a popular choice for various applications. Among the many advantages are:


The adaptability of thin film technology is one of its most notable advantages. Thin films can be adjusted to fulfill individual needs by varying the thickness, coating material, and substrate. This adaptability enables customization and adaptation to a broad range of applications. Thin films can be precisely manipulated to obtain desired results, whether a few atomic or numerous layers.

Enhanced Properties

Thin coatings can improve and change the properties of the underlying substrate. Conductivity, durability, scratch resistance, and electrical qualities can all be increased by depositing a thin coating of material. This opens the door to developing substrates with improved functionality and performance, broadening the possible applications in various disciplines.

Wide Material Choices

Many different substances can be used to create thin films. The materials available for thin film deposition range from organic compounds to pure metals and everything in between. This material selection variety enables customization depending on unique needs and opens up chances for innovation and research across industries.

Customization and Control

The HEX Series of deposition systems is developed with customization and control in mind. Their modular features allow the system to be adapted and configured to meet unique needs. Researchers and developers can stay on the cutting edge of thin film technology by being able to modify components and implement advanced functionality. This level of customization and control enables users to perform in-depth R&D, optimising processes and pushing the frontiers of thin film applications.

The Bottom Line

Thin film deposition systems are critical tools in many sectors because they allow for the formation of thin layers of material on surfaces. Examples of flexible, adaptable methods for improving substrate qualities include Physical Vapour Deposition (PVD) and Chemical Vapour Deposition (CVD). Thin film technology has many uses, from improving light transmission in optoelectronics to improving performance in semiconductors and providing lasting coatings in medical applications. Thin film technology is a popular choice for academics and producers due to its versatility, ability to increase attributes, vast material selection, and customization and control possibilities.

If you are involved in research or production activities requiring thin film deposition, you must investigate the options deposition systems provide. Consider investing in a dependable and configurable system, such as the HEX Series, which allows you to customise your deposition procedure to individual needs. You may unleash new potential for innovation and improve the performance of your products by embracing thin film technology. Maintain your place at the vanguard of thin film applications by leveraging the power of deposition systems and pushing the limits of what is achievable in your sector.
